Graphite Main Performance Index

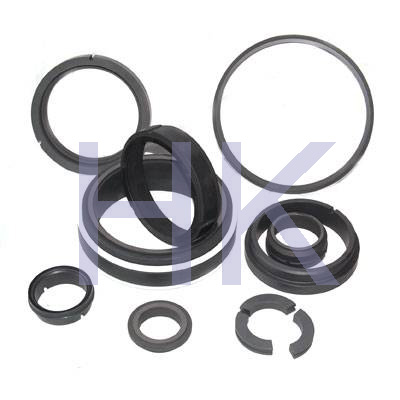

Graphite has the good property of good resistant-corrosion, high thermal conductivity and lower friction, good self-lubrication, the smaller expansion. They can be made into the seal faces, bearings and so on. It is ideal to choose it as the frictional mating rings.
|
Graphite chemical property | ||||||||
|
Category |
Model |
Density |
Fractural Strength |
Compressive Strength(MPa) |
Shaw Hardness |
Porosity |
Temperatures | |
|
(g/cm3) |
(MPa) |
(HS) |
(%) |
(oC) | ||||
|
Carbon-graphite |
Impregnated Epoxy Resin(H) |
M106H |
1.75 |
65 |
200 |
85 |
<1 |
250 |
|
M120H |
1.7 |
60 |
180 |
80 |
<1 |
250 | ||
|
Impregnated Furan Resin(K) |
M106K |
1.75 |
67 |
200 |
90 |
<1 |
250 | |
|
M120H |
1.7 |
62 |
180 |
85 |
<1 |
250 | ||
|
Impregnated Phenol Aldehyde Resin(F) |
M106F |
1.75 |
60 |
200 |
85 |
<1 |
250 | |
|
M120F |
1.7 |
55 |
180 |
80 |
<1 |
250 | ||
|
Antimony Carbon(D) |
M106D |
2.3 |
65 |
220 |
90 |
<1.5 |
400 | |
|
M120D |
2.3 |
60 |
220 |
90 |
<1.5 |
400 | ||
|
M254D |
2.3 |
55 |
210 |
65 |
<1.5 |
450 | ||
